1-12-078

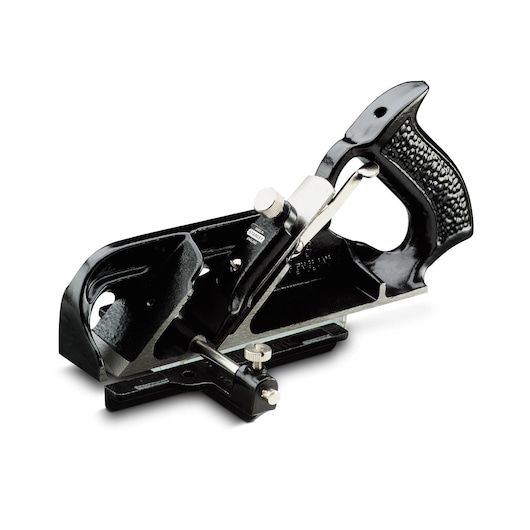

STANLEY® BAILEY® Duplex Rebate Plane No. 78
1-12-078

STANLEY® BAILEY® Duplex Rebate Plane No. 78

  • 38mm blade width
  • 4 position barley grain
  • Black lacquered finish
View more features

Product Overview

STANLEY® BAILEY® Duplex Rebate Plane (No. 78)

Additional Features

  • Cutter adjustable for depth of cut in the rear position
  • Depth adjustment of the iron by a lever
  • Depth gauge and lateral guide for rebates
  • Replacement iron available solely on request
  • Die-cast stopping block and rectified right cheek
  • Supplied with an adjustable fence depth gauge and cutting spur
  • Two cutter positions for regular and bull nose work

Specifications

Iron Gradient
25 deg
Product Width [Metric]
12 cm
CE Mark
No
Product Height [Metric]
5 cm
Product Weight [Metric]
2 Kg
Iron Length [Imperial]
4.06 in
Product Weight Gross [Metric]
2 Kg
Number of Pieces
1
Iron Length [Metric]
103 mm
Is it a Set
No
Product Length [Metric]
27 cm
Iron Width [Metric]
39 mm
Iron Width [Imperial]
1.54 in

Support

Warranty

  • 1 Year Warranty

We're confident of the quality of our products and we'll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

Learn More

Service

We take extensive measures to ensure all our products are made to the very highest standards but on the rare occasion that you need our help & support, we've got you covered. Just get in touch.

Support Manual
