STHT0-77364

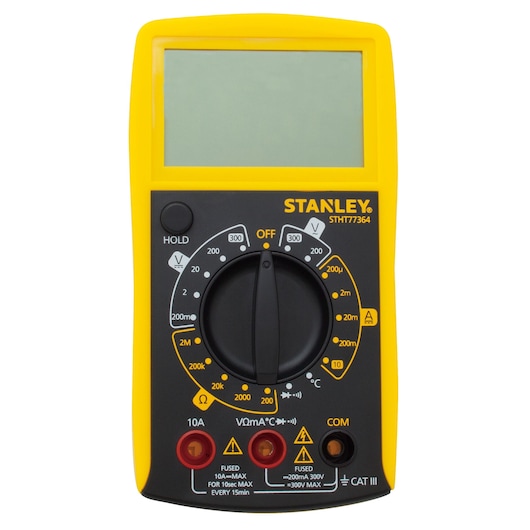

STANLEY® Multi-Meter
STHT0-77364

STANLEY® Multi-Meter

  • STANDARDS: 7 functions and 20 ranges, rated for Category 3 standards CAT III
  • EASY TO READ: Easy to read LCD screen with large numbers
  • COMFORTABLE AND ERGONOMIC DESIGN: With a rugged over molded housing adds to shock resistance
View more features

Product Overview

AC/DC digital multimeter for voltage, amperage & resistance powered by a 9V battery which is supplied

Additional Features

  • FREQUENCY RANGE: 40Hz-400Hz
  • TEMPERATURE RANGE: 0°C - 1000°C
  • BATTERY TESTING: Tests AAA, AA, C, D, 1.5 volt, button cell, and 9 volt batteries
  • VOLTAGE AC: 200V/300V Voltage DC: 200mV/2000mV/20V/200V/300V
  • CONTINUITY: <30Ω
  • CURRENT DC: 200μ/2000μ/20m/200m/10A
  • DIODE CHECK: 2,8V/1mA
  • RESISTANCE: 200Ω/2000Ω/20kΩ/200kΩ/2000kΩ
  • RUNS ON: 1 x 9V battery (supplied)

Specifications

Clips Supplied
No clip
Tester & Multimeters Type
Automotive Multimeter
Product Width [Metric]
40 mm
CE Mark
Yes
Product Height [Metric]
240 mm
Product Weight [Metric]
0.259 Kg
Battery Included
No
Ohmmeter Range (MΩ)
2 MΩ
Voltage
200-300 V
Battery Type
9 Volt
Number of Pieces
1
Is it a Set
No
Packaging
Blister
Product Length [Metric]
157 mm
Automatic
Yes
